Honeywell offers a wide range of reliable pressure sensors for printed circuit board mounting for gaseous and liquid media. With a wide range of connectivity options, outputs, accuracy classes and print areas, a suitable pressure sensor series is available for nearly every application.

For quick orientation, here are some excerpts of the Boardmount Pressure Sensors overview.

For details please click on the graphics.

boardmountselection-bilder

boardmountselection-tabelle

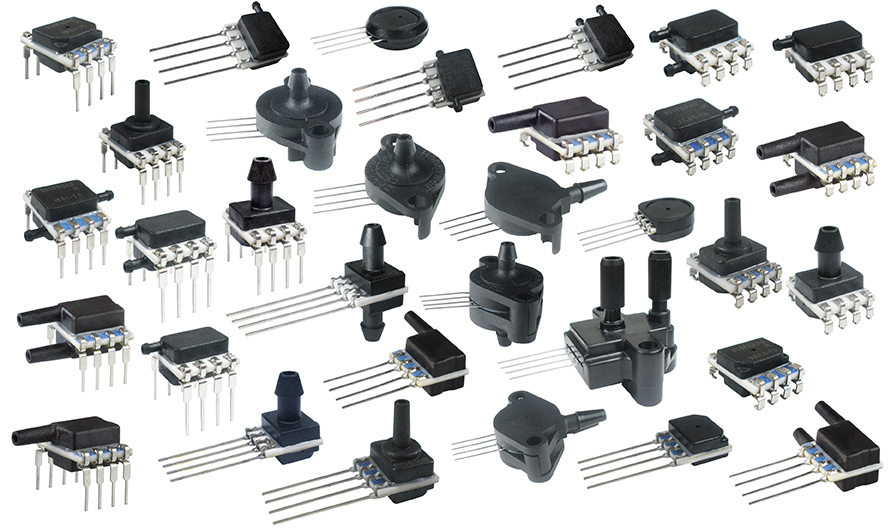

TruStability™

– RSC Series (High Resolution, High Accuracy, Compensated/Amplified)
– HSC Series (Compensated/Amplified)
– SSC Series (Compensated/Amplified)
– TSC Series (Compensated/Unamplified)
– NSC Series (Uncompensated/Unamplified)



trustability-board-mount-pressure_all_72dpi



RSC (High Resolution – High Accuracy Silicon Ceramic) Serie

  • High 24-bit resolution; analog-to-digital converter with integrated EEPROM
  • Extremely tight Total Error Band, as low as ±0.25 %FSS depending on pressure range (after auto zero),
    due to Honeywell’s patented sense die design, in-house compensation, calibration, and mechanical package design
  • Extremely tight accuracy of ±0.1 %FSS BFSL (low power consumption, less than 10 mW, typ.)
  • Virtually insensitive to mounting orientation (±0.1 %FSS or ±0.2 %FSS, depending on pressure range)
    due to Honeywell’s patented sense die design
  • Port 1 can be exposed to non-corrosive, non-ionic liquids when the liquid media option is selected




HSC (High Accuracy Silicon Ceramic) Serie

  • Extremely tight Total Error Band due to Honeywell’s patented sense die design,
    in-house compensation and calibration, and mechanical package design:
    – ±3 %FSS for 2 inH2O span
    – ±1.5 %FSS for 3 inH2O to 5 inH2O span
    – ±1 %FSS above 5 inH2O span
  • Virtually insensitive to mounting orientation (<0.15 %FSS) and very low vibration
    sensitivity due to Honeywell’s patented sense die design
  • High resolution (min. 0.03 %FSS analog, 12-bits digital) due to the use of sensors
    specifically designed for ultra-low pressures, not just amplifying higher range sensors
  • Port 1 can be exposed to non-corrosive, non-ionic liquids when the liquid media option is selected
  • Extremely tight accuracy of ±0.25 %FSS BFSL: inherently a linear sense die design/diaphragm

SSC (Standard Silicon Ceramic) Serie

  • Compensated unamplified for those customers that require temperature compensation
    but want to do their own amplification
  • Back-side sensing allows for wet capability on one port; port 1 can be exposed to non-corrosive, non-ionic liquids
  • For use with water (wet on one side)
  • Ease of installation
  • Many housing/port styles

TSC Series

  • Compensated unamplified for those customers that require
    temperature compensation but want to do their own amplification
  • Back-side sensing allows for wet capability on one port; port 1 can be exposed to non-corrosive, non-ionic liquids
  • For use with water (wet on one side)
  • Ease of installation
  • Many housing/port styles

NSC Series

  • Uncompensated uncalibrated for those customers
    who want to do their own compensation, calibration, and amplification
  • Back-side sensing allows for wet capability on one port: port 1 can be exposed to non-corrosive, non-ionic liquids
  • For use with water (wet on one side)
  • Ease of installation
  • Many housing and port styles


ABP Series

  • Amplified and compensated, analog or digital output, single or
    dual ports, small package
  • Cost: Select the ABP Series if cost is a major concern and some
    sensor performance can be de-rated. The ABP series has fewer
    porting and housing options than the HSC Series and SSC
    Series

TBP Series

  • Unamplified and uncompensated, analog output
  • Cost: Select the TBP Series if cost is a major concern and
    some sensor performance can be de-rated. The TBP series has
    fewer porting and housing options but does come in a smaller
    package.

NBP Series

  • Unamplified and uncompensated, analog output
  • Back-side sensing allows for wet capability on one port: port 1
    can be exposed to non-corrosive, non-ionic liquids
  • Cost: Select the NBP Series if, and only if, the application
    cannot be met with the other sensors noted above due to cost
    considerations
